Lenovo Posted December 14, 2018 Posted December 14, 2018 I just bought 2 SSD 120gb, to be replaced in 2 computers for the operating system. one applied to this computer: System Information Report General Operating System Microsoft Windows 10 Pro Central Processor Intel(R) Core(TM)2 Quad CPU Q8400 @ 2.66GHz User Name simon Graphics Video Adapter NVIDIA GeForce GTX 460 Video Memory 1,0 GB Screen Resolution 1024 x 768 Storage Total Memory 4,0 GB Free Memory 1,1 GB Total Hard disk 1974,3 GB Free Hard disk 679,4 GB I/O Mouse Dispositivo di input USB Keyboard Tastiera standard PS/2 Computer System Computer Name ############# User Name ############# Organization ############# Operating System OS Name Microsoft Windows 10 Pro OS Version 10.0.17763 Product ID ############# System Up Time 14/12/2018 01:28:07 Internet Explorer Version 11.194.17763.0 Microsoft DirectX Version DirectX 12 OpenGL Version 10.0.17763.1 (WinBuild.160101.0800) Registry Maximum Size 4095 MB Current Size 100 MB Status OK Central Processor CPU Name Intel(R) Core(TM)2 Quad CPU Q8400 @ 2.66GHz Number of logical processors 4 Code Name ############ Manufacturer GenuineIntel Current Clock Speed 2664 Mhz Max Clock Speed 2664 Mhz Voltage 1,3V External Clock 333 Mhz Serial Number BFEBFBFF0001067A CPU ID Intel64 Family 6 Model 23 Stepping 10 Socket Designation Socket 775 L1-Cache 128 KB L2-Cache 4096 KB L3-Cache 0 KB Motherboard Model P5KPL-SE Manufacturer ASUSTeK Computer INC. Serial Number ############### BIOS Name BIOS Date: 08/20/10 21:10:56 Ver: 08.00.12 BIOS Vendor American Megatrends Inc. SMBIOS Version 0701 BIOS Date 20/08/2010 BIOS Features ISA is supported Yes PCI is supported Yes Plug and Play is supported Yes APM is supported Yes BIOS is Upgradable (Flash) Yes BIOS shadowing is allowed Yes ESCD support is available Yes Boot from CD is supported Yes Selectable Boot is supported Yes BIOS ROM is socketed Yes EDD (Enhanced Disk Drive) Specification is supported Yes Int 13h - 5.25 /1.2MB Floppy Services are supported Yes Int 13h - 3.5 / 720 KB Floppy Services are supported Yes Int 13h - 3.5 / 2.88 MB Floppy Services are supported Yes Int 5h, Print Screen Service is supported Yes Int 9h, 8042 Keyboard services are supported Yes Int 14h, Serial Services are supported Yes Int 17h, printer services are supported Yes Int 10h, CGA/Mono Video Services are supported Yes ACPI supported Yes USB Legacy is supported Yes LS-120 boot is supported Yes ATAPI ZIP Drive boot is supported Yes Memory Resource Total Memory 4,0 GB Used Memory 2,9 GB Free Memory 1,1 GB Memory Usage 72% Physical Memory Memory Bank BANK0 Description Physical Memory 0 Device Locator DIMM A1 Capacity 2,0 GB Speed 800 Mhz Manufacturer Manufacturer0 Data Width 64 bit Memory Type Form Factor DIMM Physical Memory Memory Bank BANK1 Description Physical Memory 1 Device Locator DIMM B1 Capacity 2,0 GB Speed 800 Mhz Manufacturer Manufacturer1 Data Width 64 bit Memory Type Form Factor DIMM Disk Drives Name SanDisk SSD PLUS 120GB ATA Device Media Type Fixed hard disk media and this computer ------------------------------------------------------------------- Hardware Product name 17-f225nl Product code L2U31EA Microprocessor Intel Core i5-5200U with Intel HD 5500 graphics card (2.2 GHz, 3 MB cache, 2 cores) Memory 8 GB of 1600 MHz DDR3L SDRAM (1 x 8 GB) Video Card NVIDIA GeForce 830M (2 GB of dedicated DDR3)Kingston SSD A400 - 120GB (2.5", SATA III TLC) Multimedia unit SuperMulti DVD burner Display WLED Backlight BrightView HD + diagonal 43.9 cm (17.3 ") (1600 x 900) Network card 10/100 Base-T Ethernet LAN integrated Wireless connection Combo 802.11b / g / n (1x1) and Bluetooth 4.0 (enabled for Miracast) Audio BeatsAudio with 2 speakers Keyboard Complete island keypad with integrated numeric keypad Pointing device HP Imagepad with support for multi-touch gestures External doors 1 SD multi-format memory card reader 1 HDMI 1 combined headset / microphone 1 USB 2.0 2 USB 3.0 1 RJ-45 dimensions 41.95 x 27.9 x 2.77 cm Weight 2.82 kg Supply 65W AC power adapter Lithium-ion, 4-polymeric cells of 41 WHr Camera HP TrueVision HD Webcam (front) with integrated digital dual-array microphone Software Operating system: Windows 10 Professional 64 bits 1809 - updated to December 2018 v17763.194 ---------------------------------------------------------------------- being the first time I use an SSD I would like to ask some expert, what I have to vare to have the best performance Quote
Platinum VIP -=HipKat=- Posted December 14, 2018 Platinum VIP Posted December 14, 2018 (edited) Not sure of your question, but I run ET on an SSD Edited December 14, 2018 by -=HipKat=- Quote
Siwex89 Posted December 14, 2018 Posted December 14, 2018 being the first time I use an SSD I would like to ask some expert, what I have to vare to have the best performance nothing really, works good straight from the box Quote

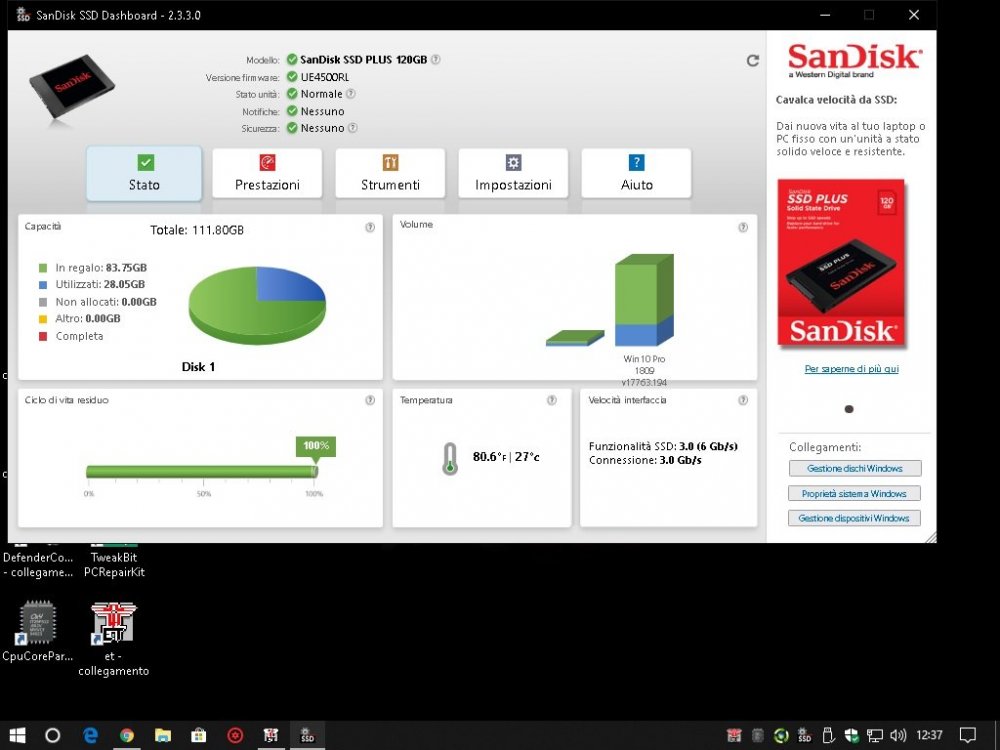

Lenovo Posted December 14, 2018 Author Posted December 14, 2018 I'm unlucky because my motherboard takes only half the speed of the Sandisk SSD PLUS 120gb 3GB / 6GB SATA III it works at 3GB Quote
Lenovo Posted December 14, 2018 Author Posted December 14, 2018 (edited) Ho provato uno scattare, gli scatti sono molto veloci, ma devo ancora abituarmi, invece ho messo un laptop sul laptop Kingston SSD A400 - Solid State Drive da 120 GB (2.5 ", SATA III TLC) scheda dati -------------------------------------------------- - Fattore di forma: 2,5 " Interfaccia: SATA Rev. 3.0 (6Gb / s) - retrocompatibile con standard SATA Rev. 2.0 (3Gb / s) Capacità 2: 120 GB, 240 GB, 480 GB, 960 GB Controller3: 2Ch NAND: TLC Prestazioni minime1 : trasferimento dati (ACT): 120 GB - fino a 500 MB / s in lettura e 320 MB / s in scrittura 240 GB - fino a 500 MB / s in lettura e 350 MB / s in scrittura 480 GB - fino a 500 MB / s in lettura e 450 MB / s in scrittura 960 GB - fino a 500 MB / s in lettura e 450 MB / s in scrittura Consumo energetico: 0,195 W in standby / 0,279 W in media / 0,642 W (MAX) in lettura / 1,535 W (MAX) in scrittura Temperatura di stoccaggio: -40 ° C ~ 85 ° C Temperatura di esercizio: 0 ° C ~ 70 ° C Dimensioni: 100,0 mm x 69,9 mm x 7,0 mm Peso: 41g -------------------------------------------------- ----------- per fortuna sul portatile funziona a 6 GB I paid them both € 27 on amazon Kingston a400 Sandisk SSD PLUS Edited December 14, 2018 by JirenTV Quote
Siwex89 Posted December 14, 2018 Posted December 14, 2018 I think the problem is that your motherboard supports only sata2 and you need sata3 6Gb/s connectors to run those ssds at full speed Quote
Smoky Posted December 14, 2018 Posted December 14, 2018 Like Siwex89 said : Values from Asus: Intel® LGA775-Plattform Unterstützt 45nm-Prozessoren Intel® G31 + ICH7-Chipsatz Front Side Bus-Overclocking mit 1600(O.C)/1066/800 MHz Dual-Channel DDR2 1066(O.C.)/800/667-Unterstützung PCI Express™ x16-Architektur Realtek® PCIe Gigabit LAN inklusive AI NET2 4x SATA 3Gb/s-Schnittstellen 6-Kanal HD-Audio EZ Flash2 & CrashFree BIOS3 1 Quote
Lenovo Posted December 14, 2018 Author Posted December 14, 2018 in fact, the reason for my disappointment is on the assembled pc, because the laptop has the sata3 port, and the 6GB / s connection works Quote
Smoky Posted December 14, 2018 Posted December 14, 2018 (edited) try AS SSD Benchmark or crystal diskto have a look at the speed. Maybe everything is ok Picture is taken from Amazon from Kingston SSD 240 as a hint. Edited December 14, 2018 by Smoky Quote

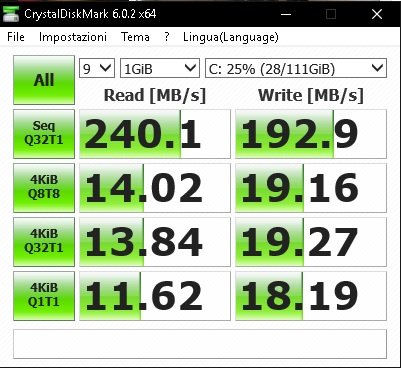

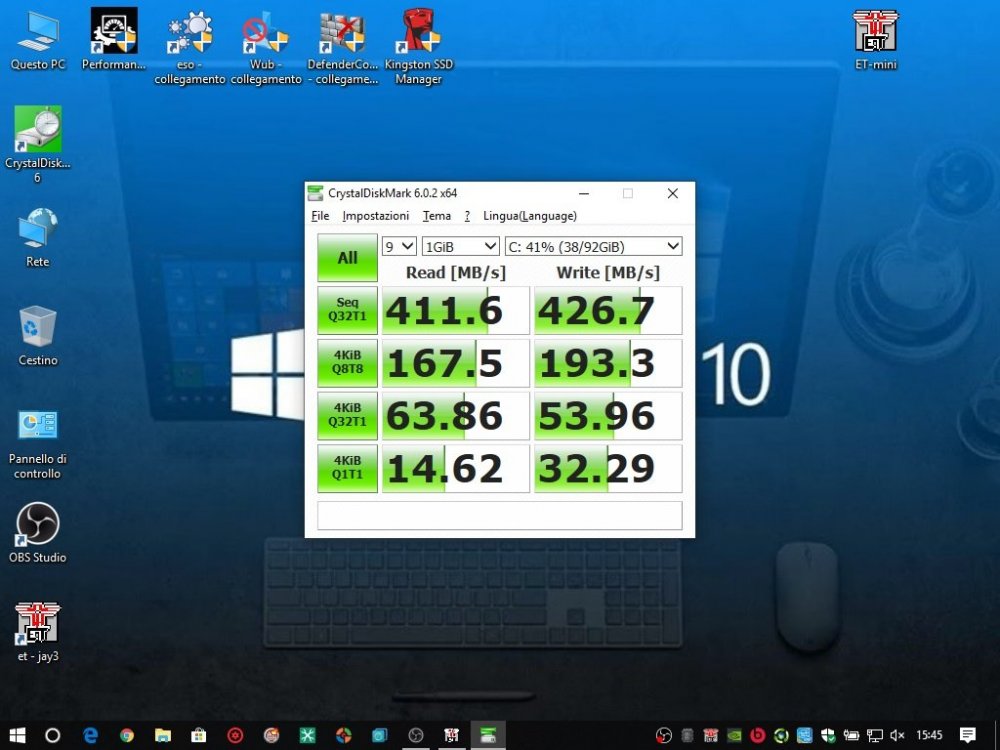

Lenovo Posted December 14, 2018 Author Posted December 14, 2018 (edited) the fixed pc with connection 3 GB / s something is wrong, but I'm using the computer in other operations, I do not think is reliable I now run the test on the laptop, while I run et, and with obs enabled in streaming good Edited December 14, 2018 by JirenTV Quote
DoubleDragon Posted December 14, 2018 Posted December 14, 2018 Look in bios for AHCI in Advanced there is Jmicron SATA Controller switch from IDE to AHCI to get full speed read/write ability don't switch the SATA Configuration leave it as IDE One is called Configuration other is called Controller 2 Quote
DoubleDragon Posted December 14, 2018 Posted December 14, 2018 I only see this Kingston SSD Manager https://www.kingston.com/us/support/technical/ssdmanager I think it only works on genuine Kingston's if you have a fake one you will know. Im not sure of Kingston's ssdmanager if it has a rapid mode or advanced setup feature like Samsung but it should have a bench mark tool to check Read/Write~IOPs as you should use a program built by the manufacturer of the device for best results and accuracy. There is this 3rd party tool to do more checking but I can't approve of 3rd party tools but you can use at your discretion https://www.hyperxgaming.com/us/support/technical/kingston-ssd-toolbox " I don't approve of 3rd party tools because they can be outdated but this works on windows 7-8.1" before installing always scan for virus's before installing. As for the AHCI if you Switch the configuration from IDE to AHCI and the system doesn't boot that is because you have to install the new system on a un-partitioned drive to use Configuration just so you know. Quote
Lenovo Posted December 14, 2018 Author Posted December 14, 2018 I tried, and on 4 hard drives sees me the one connected to the third os-free sata port, and one connected with the usb adapter I basically have these: port 1 SATA SanDisk SSD PLUS 120GB 2 SATA port Samsung 1TB port 3 SATA Seagate 1TB 4 SATA port free Seagate USB port 300GB 7200rpm Kingston SSD Manager I'm using it on the laptop because I have them that SSD Kingston Quote
DoubleDragon Posted December 14, 2018 Posted December 14, 2018 Is the SSD the primary boot device if it is and you have AHCI enabled in Controller and already have a OS on before hand the others will be dormant to the default port speeds built in for the type they are. For the Kingston you should be getting 450-500 mbs read/write with AHCI enabled in Controller if your connected to SATA3 port if it is just SATA2 you should still get the same results minus storage size 6g/3g If you are not you may need to unplug the others for a min setup the SSD device and benchmark it to be sure it's getting the proper speed. That should be all you need to do and if you want to use AHCI Configuration delete the SSD partition from another OS and only if you have a Windows Install disc available and then set the Configuration on to the SSD to AHCI from IDE and change Controller to AHCI If all else fails reset cmos to factory settings and start over Quote
TulsaGeoff Posted December 14, 2018 Posted December 14, 2018 (edited) 3 hours ago, DoubleDragon said: Is the SSD the primary boot device if it is and you have AHCI enabled in Controller and already have a OS on before hand the others will be dormant to the default port speeds built in for the type they are. For the Kingston you should be getting 450-500 mbs read/write with AHCI enabled in Controller if your connected to SATA3 port if it is just SATA2 you should still get the same results minus storage size 6g/3g If you are not you may need to unplug the others for a min setup the SSD device and benchmark it to be sure it's getting the proper speed. That should be all you need to do and if you want to use AHCI Configuration delete the SSD partition from another OS and only if you have a Windows Install disc available and then set the Configuration on to the SSD to AHCI from IDE and change Controller to AHCI If all else fails reset cmos to factory settings and start over Exactly this. Here's what I would do. 1) Download Windows install disc and use a thumb drive to save on. https://www.microsoft.com/en-us/software-download/windows10 FYI this will delete any existing data on the thumbdrive 2) Confirm the firmware is up to date and update if needed (Update firmware on SSD and motherboard bios) 3) Confirm using a SATA 3 cable. If all of the sata ports are sata3 the cables supplied with the mobo should all be sata3. Use of SATA 2 cable will result in 3GB/s. 4) Pull the other harddrive and plug the ssd into sata 1 5) Confirmed AHCI mode was enabled before you install windows. Reboot with install media (CD or thumbdrive) To find AHCI Follow steps similar to 1 through 5 and save https://docs.oracle.com/cd/E19127-01/ultra27.ws/820-6773/giakd/index.html 6) Install Windows with AHCI enabled. 7) Now reconnect HDD drive and move your documents and whatever over from your hard drive. Then reformat that drive. Now you have a fresh HDD storage drive. If it doesnt work you then I would return or RMA the drive. Apparently some one else had an issue and it was their Kingston drive. Look at the answers. http://www.tomshardware.com/answers/id-2978543/ssd-running-sata-speeds.html If it still doesn't work and you are okay with it, its still an SSD and SIGNIFICANTLY better than your old HDD Edited December 14, 2018 by TulsaGeoff Quote
