China's Zhurong rover reveals complex layers beneath the surface of Mars.

[LazyHippo]

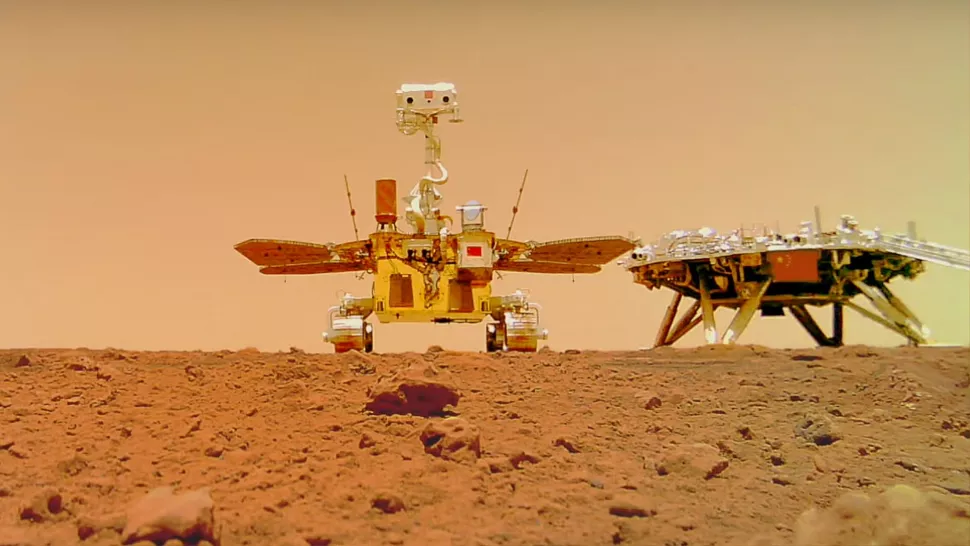

A 'selfie' taken by China's Zhurong Mars rover during the Tianwen 1 mission. (Image credit: China News Service)




China's Zhurong rover has provided one of the few peeks into what lies below the surface of Mars.



Data returned by Zhurong's ground-penetrating radar instrument reveals evidence of craters buried just under the surface of Mars and other, sloping features with less certain origins, according to a new paper.



This view of the Martian surface, which shows several clear features, contrasts starkly with the shallow subsurface structure of Earth's moon, also revealed by ground-penetrating radars. The moon's uppermost 33 feet (10 meters) consists of fine layers that have been ground up by a bombardment of micrometeorite strikes.





The difference may be explained by Mars' thin atmosphere, which offers protection against micrometeorites and also has weathering effects on the surface.

"We found a lot of dunes on the surface at the landing site, so maybe this crater was quickly buried by the sand and then this cover reduced space weathering, so we can see the full shape of these craters' walls," Yi Xu, the lead author on the study, said in a statement.

Zhurong launched in July 2020 along with the Tianwen 1 mission orbiter and landed in the large plain of Utopia Planitia in May 2021. The rover traveled 6,302 feet (1,921 meters) south from its landing site over the following Earth year.

The landing site was selected for engineering and science criteria, with the area thought to host shorelines of a possible ancient ocean. One objective for Zhurong's ground-penetrating radar — which pings electromagnetic signals off subsurface rocks and collects their reflections — was seeking evidence of water or ice trapped below the surface.

It uses two different frequency ranges, with the frequency used for this study providing fine detail but only to a depth of around 15 feet (4.5 m). No water was found in this study, but the other radar frequency reaches down to around 260 feet (80 m).

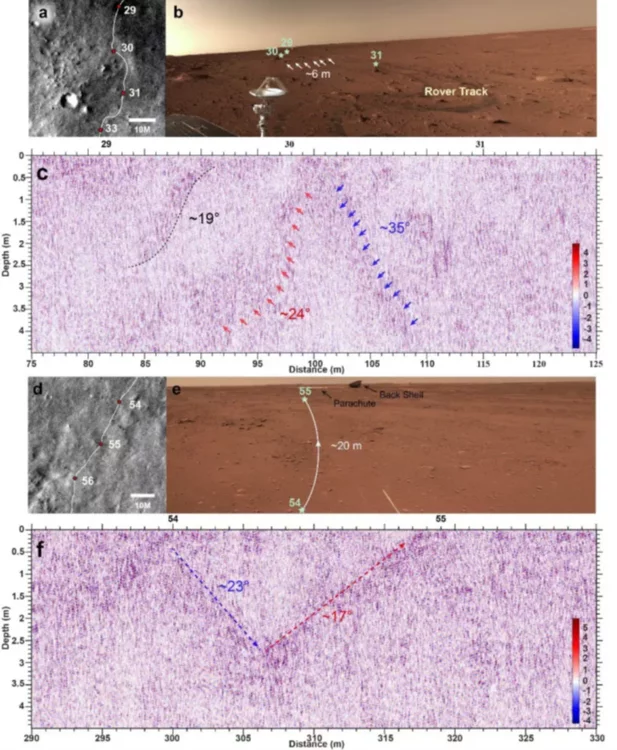

Maps, pictures and radar images of sloping reflectors traversed by China's Zhurong Mars rover. (Image credit: CNSA/Chen et al./GSA)






Researchers hope that opening this window onto the subsurface of Mars will provide insight into Mars's  geological development, clues about earlier climate conditions and possibly evidence of the presence of water or ice. NASA's Perseverance also carries a ground-penetrating radar instrument, providing new insights into its environs, the floor of Mars' Jezero Crater.

The research article was published on Feb. 9 in the journal Geology of the Geological Society of America.

Meanwhile, the fate of the Zhurong rover itself is currently unknown. The solar-powered rover entered hibernation in May 2022 due to the approaching winter in Mars' northern hemisphere. It was expected to resume activities autonomously in December, but Chinese space authorities have not commented on the rover's apparent silence.

NASA's Mars Reconnaissance Orbiter recently imaged Zhurong from orbit, showing that the rover has not moved since its hibernation period began. The rover could awaken as heat and light conditions improve in Utopia Planitia.

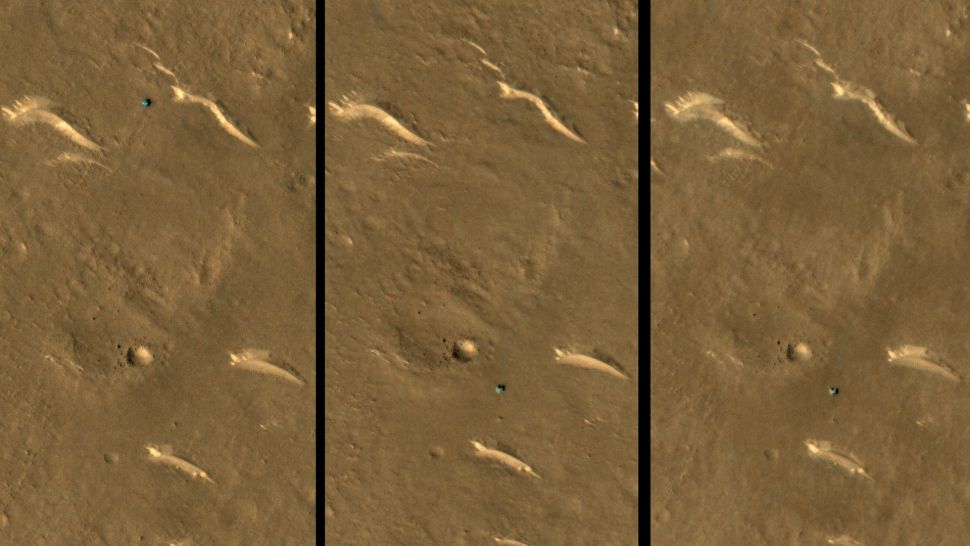

This cutout is from three images acquired in 2022 and 2023. The rover is the dark and relatively bluish feature visible in the upper middle of the first (left) image and lower middle of the other two images. This time series shows that the rover has not changed its position between Sept. 8, 2022 and Feb. 7, 2023. (Image credit: NASA/JPL-Caltech/UArizona)




On Feb. 10, China's Tianwen 1 mission — the country's first interplanetary mission — celebrated its second anniversary in Mars orbit. But one major piece of the mission, the Zhurong rover, seems to have stalled, and there's now photo evidence of its stationary state.



Zhurong entered a planned hibernation in May 2022 to ride out the dark and cold Martian winter, as the rover relies on solar energy for power and heat. Its controllers at the China National Space Administration (CNSA) anticipated a wake-up in December as the light returned in Martian spring, but the agency has not yet provided any updates about Zhurong.



New images released Tuesday (Feb. 21) by the University of Arizona, which manages the HiRISE camera on NASA's Mars Reconnaissance Orbiter, show that Zhurong did not move between Sept. 7, 2022, and Feb. 8, 2023, further suggesting that the rover has not yet awoken from hibernation.
